Shanghai NovaTork Professional Tools Click Torque Wrench/Torque Spanner 1/4 , With Ratchet Head&Window Scale

FOB Reference Price:Get Latest Price
100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
NovaTork
Model Number:
CM1012 1/4" 2.5-12 N.m
Type:
Torque Wrench, Click Torque Wrench With Ratchet Head
Material:
Alloy
Size:
285-1250mm
Standard:
ASME B107.14
Handle:
Nylon & TPR
Surface Treatment:
Chrome plated ( shining finishing or matte finishing)
Accuracy:
+/-4% accuracy in clockwise direction
Packing:
Blow mold case or as customer request
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
NovaTork/Neutral Blow Mold Case Or As Customer Request
Port
FOB Shanghai
Lead Time :
20days




Shanghai NovaTork (Quality Approved) Professional Tools Click Torque Wrench / Torque Spanner, With Ratchet Head&Window Scale



Click Torque Wrench / Torque Spanner, Ratchet Head Main Features



1. Double window scale,plastic grip,high precision,resulting in fast and efficient operation.

2. The 45-tooth reversible ratchet head for both clockwise and counterclockwise operation.

3. +/-4% accuracy in clockwise direction exceeds international specifications.

4. Ergonomic soft TPR grips are comfortable to use.

5. Unique, stay-in-place,Lock Ring makes adjustments easier and secures selected torque from accidental change.

6. Metric scale with fine increments and reference English scales are easy to read and set.

7. The identity code marked on each wrench makes it possible to keep accurate records.



Full Torque Range of Click Torque Wrench /  Torque Spanner, Ratchet Head



Metric Unit



Part
Code
DriveTorque RangeLengthWidthWeight
N.mLb.ftmmmmkg
CM10121/4"2.5-1220-105*285380.54
CM10201/4"4.0-2030-180*285380.54
CM20303/8"6.0-3050-250*313380.68
CM30301/2"6.0-3050-250*313380.68
CM20603/8"10-609-45383380.82
CM30601/2"10-609-45383380.82
CM21003/8"20-10015-75438380.90
CM31001/2"20-10015-75438380.90
CM21253/8"25-12520-90438380.90
CM31251/2"25-12520-90438380.90
CM32001/2"40-20030-150463401.02
CM33351/2"65-33550-250523401.16
CM43353/4"65-33550-250523401.20
CM3335L1/2"65-33550-250700401.95
CM4335L3/4"65-33550-250700402.00
CM44003/4"80-40060-300700572.75
CM4500S3/4"100-50080-400700572.75
CM45003/4"100-50080-400840604.04
CM48003/4"160-800120-6001040604.93
CM58001"160-800120-6001040604.93
CM410003/4"200-1000150-7501040604.93
CM510001"200-1000150-7501040604.93
CM515001"300-1500200-11001250728.20
CM520001"400-2000300-15001250728.20
CM530001"600-3000400-22001250729.50
*Unit is Lb.in


English Unit

Part
Code
DriveTorque RangeLengthWidthWeight
Lb.ftN.mmmmmkg
C12001/4"40-200*4.0-22275380.54
C22503/8"50-250*60-280*310380.68
C21003/8"20-10025-135420380.90
C31001/2"20-10025-135420380.90
C31501/2"30-15040-200460401.02
C32501/2"50-25070-340520401.16
C42503/4"50-25070-340520401.20
C3250L1/2"50-25070-340700401.95
C4250L3/4"50-25070-340700402.00
C46003/4"100-600150-8001040604.93
C56001"100-600150-8001040604.93

 * English unit is Lb.in,Metric unit is dN.m

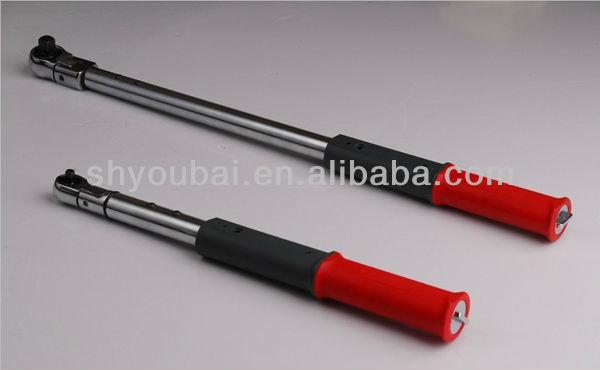

NovaTork Professional Click Torque Wrench / Torque Spanner, With Ratchet Head&Window Scale CM1012 1/4" 2.5-12 N.m Product Photos

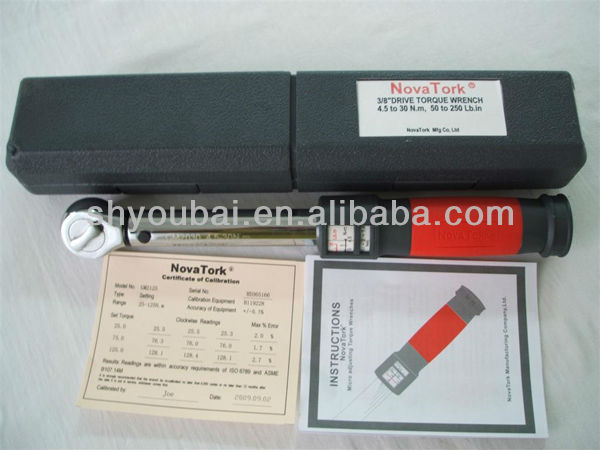

NovaTork Professional Click Torque Wrench / Torque Spanner, With Ratchet Head&Window Scale Packing Photos



One blow mold case includes:

One piece click torque wrench with ratchet head&window scale CM1012 1/4" 2.5-12 N.m

One piece user instruction

One piece certificate of calibration

One piece powder-assisted belt and its use instruction (only for torque range larger than 800N.m)





Certificate Photos




Factory Photos








Why should you cooperate with NovaTork?

Shanghai UB Machinery Co., Ltd is a high-tech enterprise in China and a leading manufacturer and distributor of torque products including mechanical and electronic wrenches, testers, multipliers and calibration equipment.

Our modern 40,000 square meters factory is located conveniently to both downtown Shanghai and Pudong International Airport in Fengxian, Qianqiao Industrial Garden Zone near Hangzhou Bay. It is equipped with precision standard and custom-made machinery and equipment, and is staffed by professional engineers, experienced managers and highly trained production and inspection personnel. The Factory's ISO 9001 accreditation and a dedication to continuous product and quality improvement is the key to producing world-class torque products that comply with international standard ISO 6789 and U.S. standard ASME B107.14-2004.

Our products have been developed in close association with Mr. Jan S. Stasiek of the United States of America, who has over 40 years of proven and successful experience in the field of torque technology.After graduating from the University of California at Los Angeles, Mr. Stasiek held top engineering and managerial positions in leading tool-manufacturing companies including Utica Tool Company, JS Technology, and Danaher Tool Group. He is a member of American Society of Mechanical Engineers, and a former chairman of Hand Tool's Institute's Torque Wrench Standards Committee.

Our goal is to provide our customers with quality torque products, timely deliveries, attractive pricing, and superior service.
