Quick Details

  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: NovaTork Digital Torque Wrench
  • Model Number: GM Series Digital Torque Wrench
  • Type: Torque Wrench, 45 Tooth All Metal Ratchet Torque Wrench
  • Material: Alloy
  • Size: Full Range
  • Color: Shinning
  • Standard: ASME B107.14
  • Handle: All Metal Construction
  • Surface Treatment: Chrome plated ( shining finishing or matte finishing)
  • Accuracy: +/-4% accuracy in clockwise direction
  • Packing: Blow mold case or as customer request
  • Name: Digital Torque Wrench

Packaging & Delivery

Packaging Details Digital Torque Wrench: normal export standard
Delivery Time Digital Torque Wrench:20 days

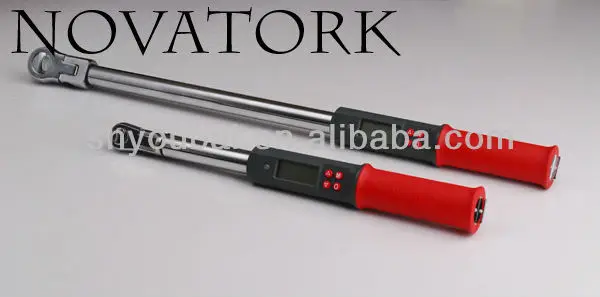

Shanghai NovaTork Auto Tools Digital Torque Wrench



Product name:Digital / Electronic Interchangeable Torque Wrench

*Target torque can be easily set on a large LCD display.

*The head holder for both clockwise and counterclockwise  operation

*The identity code marked on each wrench makes it possible to trace.

*+/-2% accuracy in clockwise direction.

*When applied torque is near target torque, yellow LED lights up. When torque is within 2% of target,

 red LED blinks and the buzzer beeps. At the target torque the red LED lights up and the buzzer sounds continuously.

 *% Deviation from set torque is automatically calculated and displayed.

*Display retains maximum torque reached until reset

*Torque Units: N.m; Lb.in, Lb.ft.

*Backlight makes it easy to operate in dark conditions, can be turned ON or OFF.

*Automatically shuts off after 3 minutes of non use.

*Runs for up to 40 hours on 4 standard AA batteries,batteries capacity indicator.



Metric Unit

Part
Code
DriveTorque RangeLengthWidthWeight
N.mLb.ftmmmmkg
EEMH9209*122.0-2017.7-177*427460.65
EEMH9309*123.0-3026.5-265*427460.65
EEMH9509*125-5044.2-442*452460.73
EEMH91009*1210-1007.4-74482460.78
EEMH1420014*1820-20014.7-147522460.90
EEMH1425014*1825-25018.4-184590461.26
EEMH1430014*1830-30022.1-221590461.26
*Unit is Lb.in



English Unit

Part
Code
DriveTorque RangeLengthWidthWeight
Lb.ftN.mmmmmkg
EEH91509*1215-150*1.7-17427460.65
EEH93009*1230-300*3.4-34427460.65
EEH91009*1210-10013.5-135482460.78
EEH1425014*1825-25034-340590461.26
*Unit is Lb.in

* Unit is Lb.in



Digital Torque Wrench

All Metal Micrometer Torque Wrench With Ratchet Head / Head Holder, Flexible Ratchet End Fitting Photos





Digital Torque Wrench



What is Torque Wrench?
It is torque wrench. A torque wrench is a tool used to precisely apply a specific torque to a fastener such as a nut or bolt.





What Torque Wrench is used for?
A torque wrench is used where the tightness of screws and bolts is crucial. It allows the operator to measure the torque applied to the fastener so it can be matched to the specifications for a particular application. This permits proper tension and loading of all parts.



Digital Torque Wrench

Related Products:



1. Ratchet Head Torque Wrench



2. Head Holder Click Torque Wrench



3. All Metal Micrometer Torque Wrench With Ratchet Head, Head Holder Torque Wrench & Flexible Ratchet Head Torque Wrench



 4. Electronic Digital Torque Wrench



5. Dial Torque Wrench

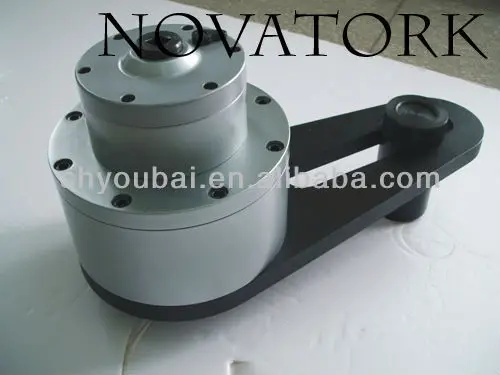

6. Torque Multiplier



Digital Torque Wrench



Why should you cooperate with NovaTork?



Shanghai UB Machinery Co., Ltd is a high-tech enterprise in China and a leading manufacturer and distributor of torque products including mechanical and electronic torque wrenches, torque testers, torque multipliers and calibration equipment.

Our modern 40,000 square meters factory is located conveniently to both downtown Shanghai and Pudong International Airport in Fengxian, Qianqiao Industrial Garden Zone near Hangzhou Bay. It is equipped with precision standard and custom-made machinery and equipment, and is staffed by professional engineers, experienced managers and highly trained production and inspection personnel. The Factory's ISO 9001 accreditation and a dedication to continuous product and quality improvement is the key to producing world-class torque wrenches that comply with international standard ISO 6789 and U.S. standard ASME B107.14-2004.

Our torque wrench have been developed in close association with Mr. Jan S. Stasiek of the United States of America, who has over 40 years of proven and successful experience in the field of torque technology.After graduating from the University of California at Los Angeles, Mr. Stasiek held top engineering and managerial positions in leading tool-manufacturing companies including Utica Tool Company, JS Technology, and Danaher Tool Group. He is a member of American Society of Mechanical Engineers, and a former chairman of Hand Tool's Institute's Torque Wrench Standards Committee.

Our goal is to provide our customers with quality torque tools, timely deliveries, attractive pricing, and superior service.



To learn more about NovaTork, please visit http://www.novatork.com.cn
